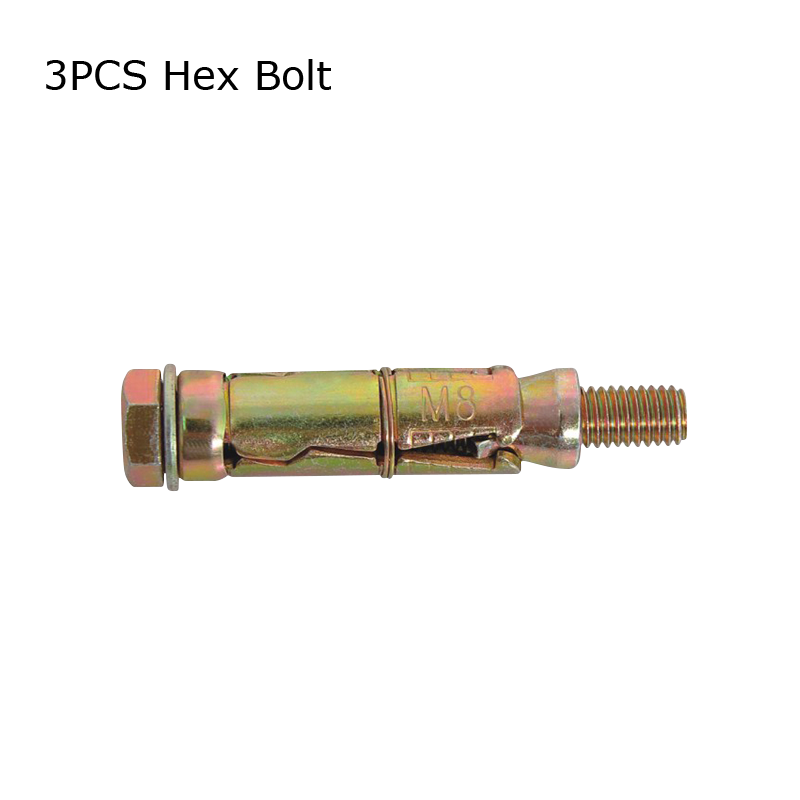

3PCS Heavy Duty Shield Anchor

3PCS Heavy Duty Shield Anchor

Introduction: Heavy duty shield anchor has high retaining power and can be removed easily. When tightening the nut or screw, the conical section is pulled into the anchor shields expanding and wedging it inside the anchor base.

Surface treatment: BZP,YZP,HDG

Material: Carbon Steel,Stainless Steel A2, Stainless Steel A4

Grade：Grade 4.8,Grade 6.8,Grade 8.8

Applications: Can be used in solid masonry and concrete, ceiling light.
blob:https://admin.hqsmartcloud.com/570a3625-c229-4cf2-a452-2143050c0a25

+86-13758224206 Contact Us
  • Description
  • Additional Information
  • Feedback

  • Code

    Size

    Thread

    Bolt Length

    HD3-36050

    3/16'' x 50

    3/16''-24UNC

    50mm

    HD3-14055

    1/4'' x 55

    1/4''-20UNC

    55mm

    HD3-56060

    5/16'' x 60

    5/16''-18UNC

    60mm

    HD3-38070

    3/8'' x 70

    3/8''-16UNC

    70mm

    HD3-12090

    1/2'' x 90

    1/2''-13UNC

    90mm

    HD3-58125

    5/8'' x 125

    5/8''-11UNC

    125mm

    HD3-06055

    M6 x 55

    M6-P1.0

    55mm

    HD3-08065

    M8 x 65

    M8-P1.25

    65mm

    HD3-10075

    M10 x 75

    M10-P1.5

    75mm

    HD3-12090

    M12 x 90

    M12-P1.75

    90mm

    HD3-16120

    M16 x 120

    M16-P2.0

    120mm

    (The bolt length can be customized.)
