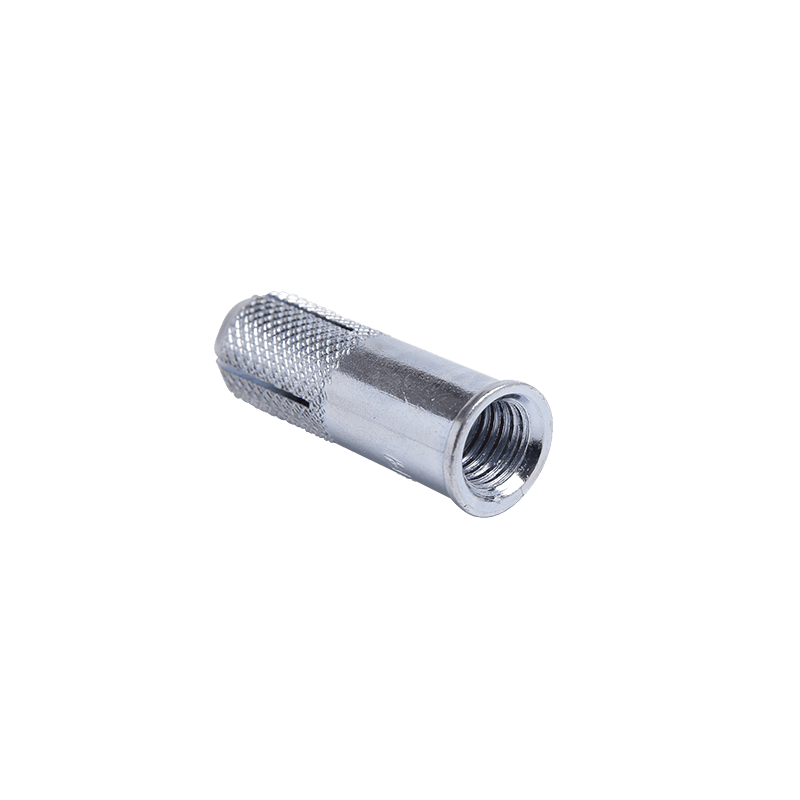

Drop in Anchor

Drop in Anchor


Introduction: Perfect expansion and specially designed built-in plug ensures full expansion of anchor. Need setting tool.

Surface treatment: BZP,YZP,HDG

Material: Carbon steel,Stainless steel A2, Stainless Steel A4

Applications: Can be used in solid masonry and concrete, ceiling light.

+86-13758224206 Contact Us
  • Description
  • Additional Information
  • Feedback

  • Code

    Size

    Thread

    Drill Diameter

    Length

    Setting Tool

    DI-14

    1/4''-20UNC x 3/8'' x 1''

    1/4’’-20UNC

    3/8’’

    1’’

    DIT-14

    DI-56

    5/16''-18UNC x 3/8'' x 1-1/4''

    5/16’’-18UNC

    3/8’’

    1-1/4’’

    DIT-56

    DI-38

    3/8''-16UNC x 1/2'' x 1-9/16''

    3/8’’-16UNC

    1/2’’

    1-9/16’’

    DIT-38

    DI-12

    1/2''-13UNC x 5/8'' x 2''

    1/2’’-13UNC

    5/8’’

    2’’

    DIT-12

    DI-58

    5/8''-11UNC x 7/8'' x 2-1/2''

    5/8’’-11UNC

    7/8’’

    2-1/2’’

    DIT-58

    DI-34

    3/4''-10UNC x 1'' x 3-3/16''

    3/4’’-10UNC

    1’’

    3-3/16’’

    DIT-34

    DI-M06

    M6X8X25

    M6-P1.0

    8mm

    25mm

    DIT-M06

    DI-M08

    M8X10X30

    M8-P1.25

    10mm

    30mm

    DIT-M08

    DI-M10

    M10X12X40

    M10-P1.5

    12mm

    40mm

    DIT-M10

    DI-M12

    M12X16X50

    M12-P1.75

    16mm

    50mm

    DIT-M12

    DI-M16

    M16X20X65

    M16-P2.0

    20mm

    65mm

    DIT-M16

    DI-M20

    M20X25X80

    M20-P2.5

    25mm

    80mm

    DIT-M20
