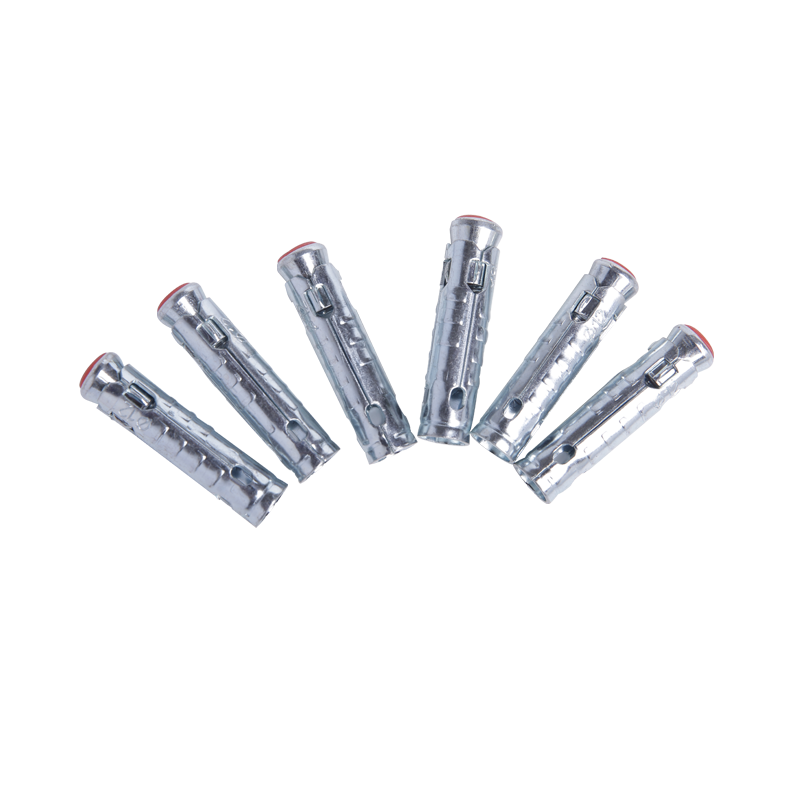

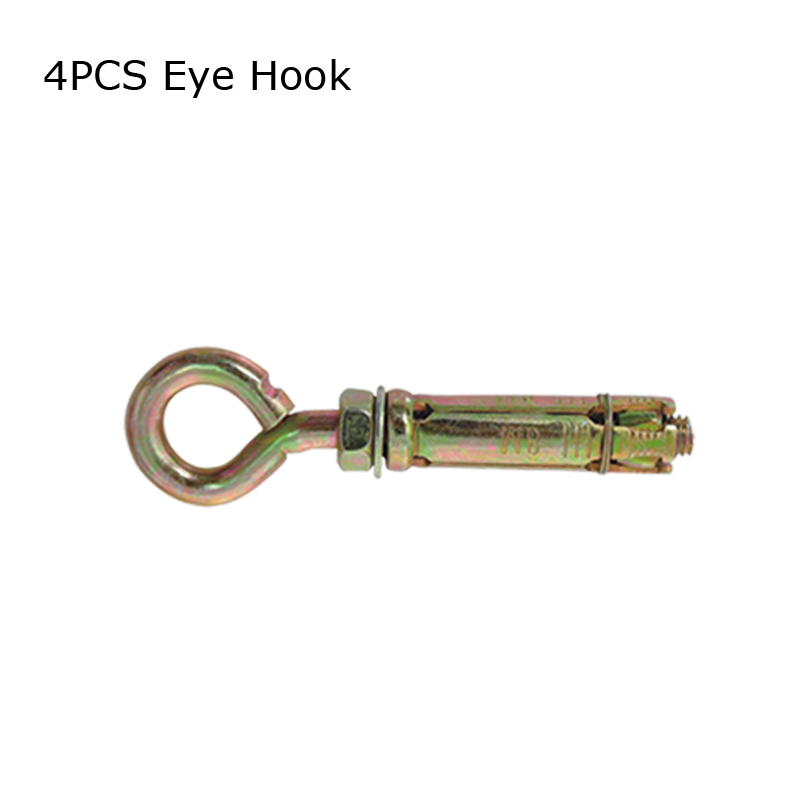

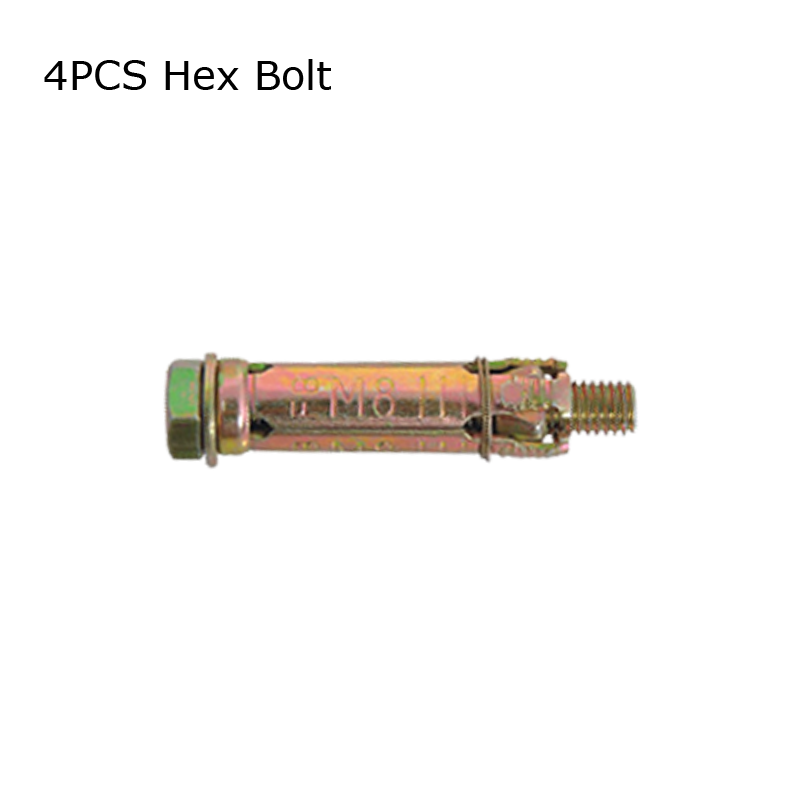

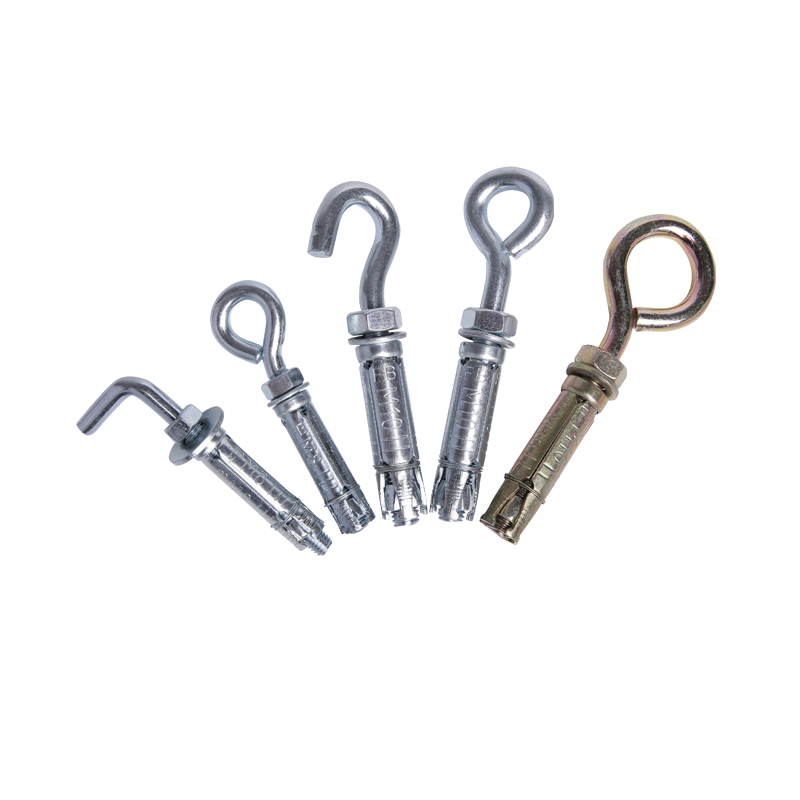

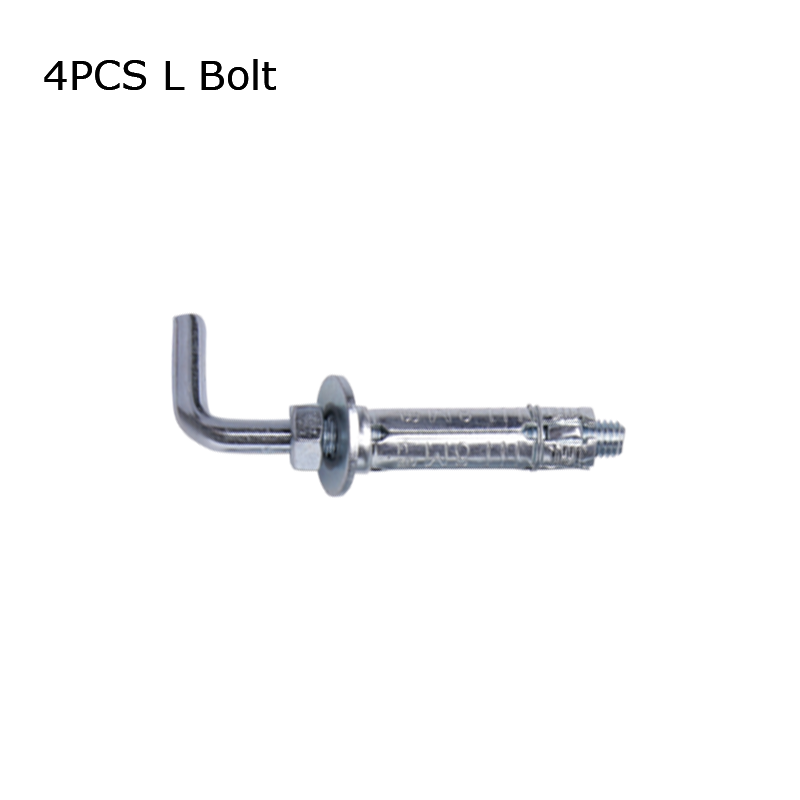

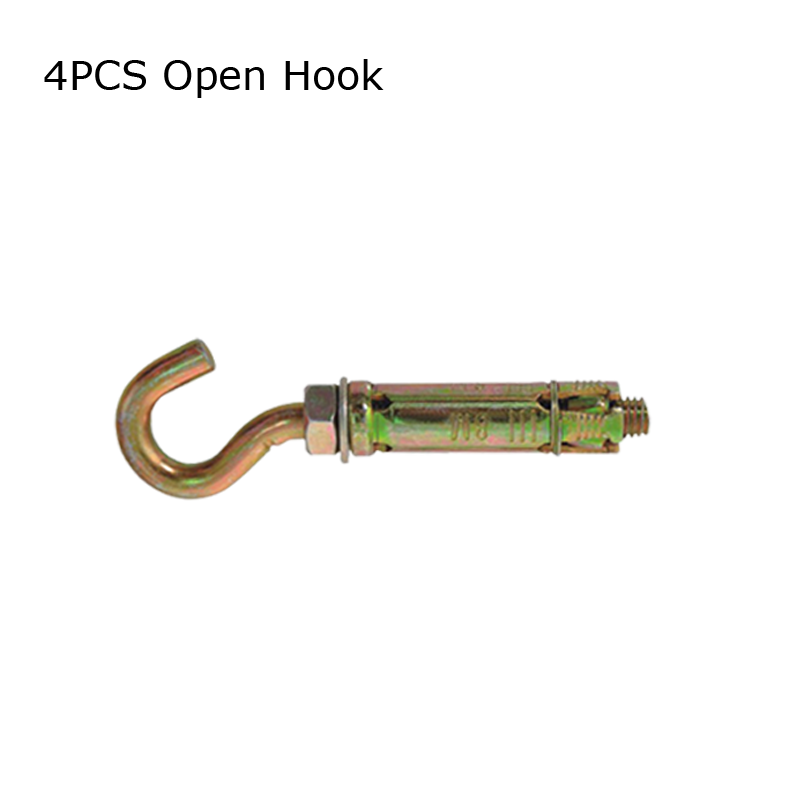

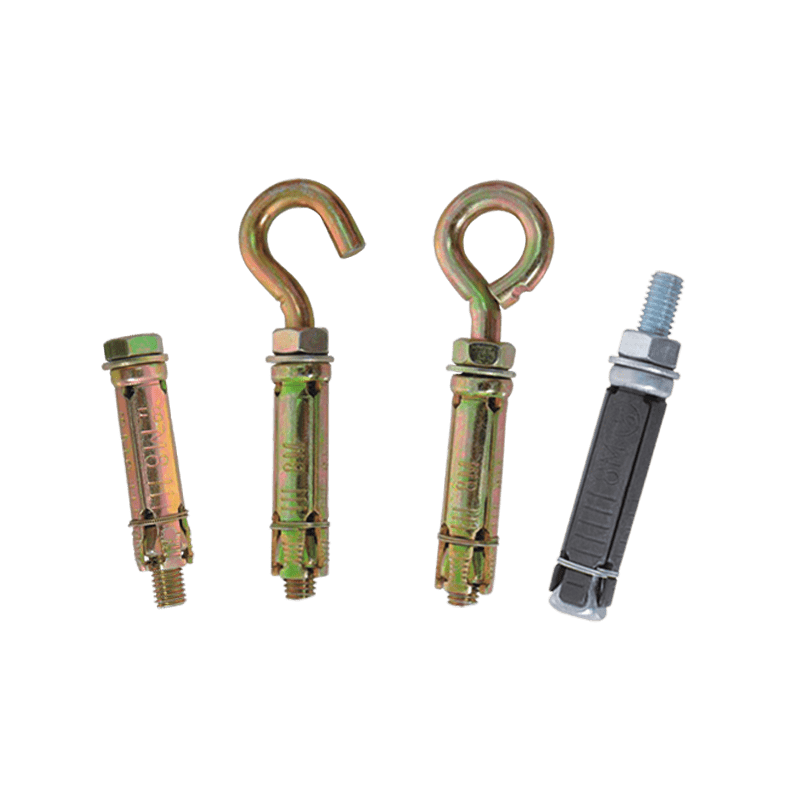

4PCS Heavy Duty Shield Anchor

Introduction: Heavy duty shield anchor has high retaining power and can be removed easily. When tightening the nut or screw, the conical section is pulled into the anchor shields expanding and wedging it inside the anchor base.

Surface treatment: BZP,YZP,HDG

Material: Carbon Steel,Stainless Steel A2, Stainless Steel A4

Grade：Grade 4.8,Grade 6.8,Grade 8.8

Applications: Can be used in solid masonry and concrete, ceiling light.

blob:https://admin.hqsmartcloud.com/9ef5c1b8-4ef2-4a0e-bab4-57265f342b89

+86-13758224206 Contact Us

Description
Additional Information
Feedback

Code	Size	Thread	Bolt Length
HD4-14050	1/4'' x 50	1/4''-20UNC	50mm
HD4-56060	5/16'' x 60	5/16''-18UNC	60mm
HD4-38070	3/8'' x 70	3/8''-16UNC	70mm
HD4-12090	1/2'' x 90	1/2''-13UNC	90mm
HD4-58110	5/8'' x 110	5/8''-11UNC	110mm
HD4-06050	M6 x 50	M6-P1.0	50mm
HD4-08060	M8 x 60	M8-P1.25	60mm
HD4-10070	M10 x 70	M10-P1.5	70mm
HD4-12090	M12 x 90	M12-P1.75	90mm
HD4-16110	M16 x 110	M16-P2.0	110mm

(The bolt length can be customized.)

Location:	China
Business Type:	Manufacturer, Exporter
Price:	Consultation
MOQ:	5,000PCS - 50,000PCS
Samples:	Available
Trade Terms:	FOB,CIF,EXW
Payment:	30% TT deposit and the balance against the copy of documents.
Delivery Times:	Usually about 30-40 days(According to the order quantity and our stock)
Packing details:	1.Bulk in carton + Pallet 2.Small white box + Carton + Pallet 3.Customized colorful box + Carton + Pallet 4.Other customized
