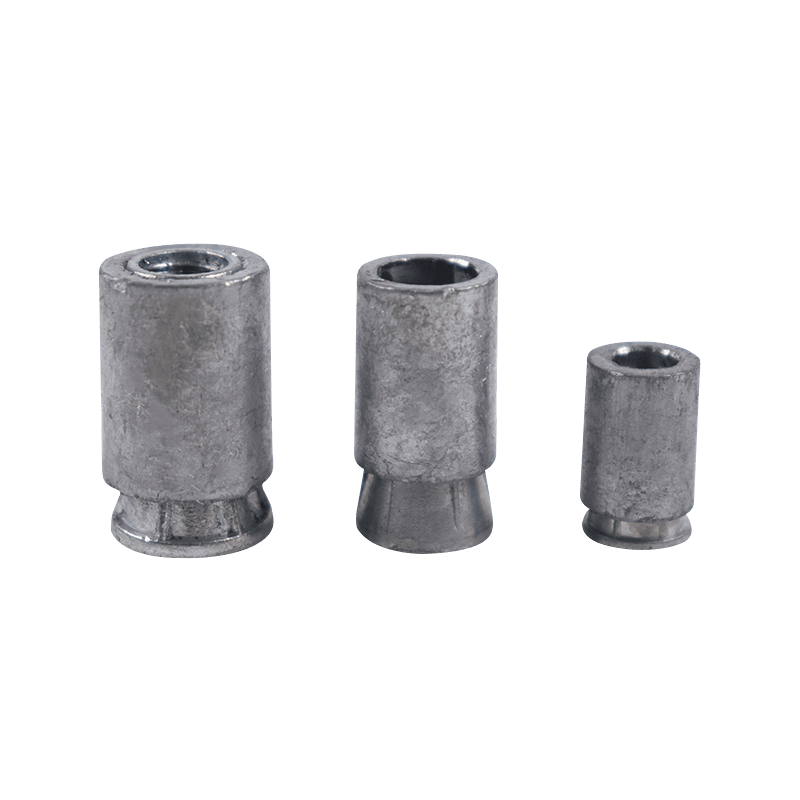

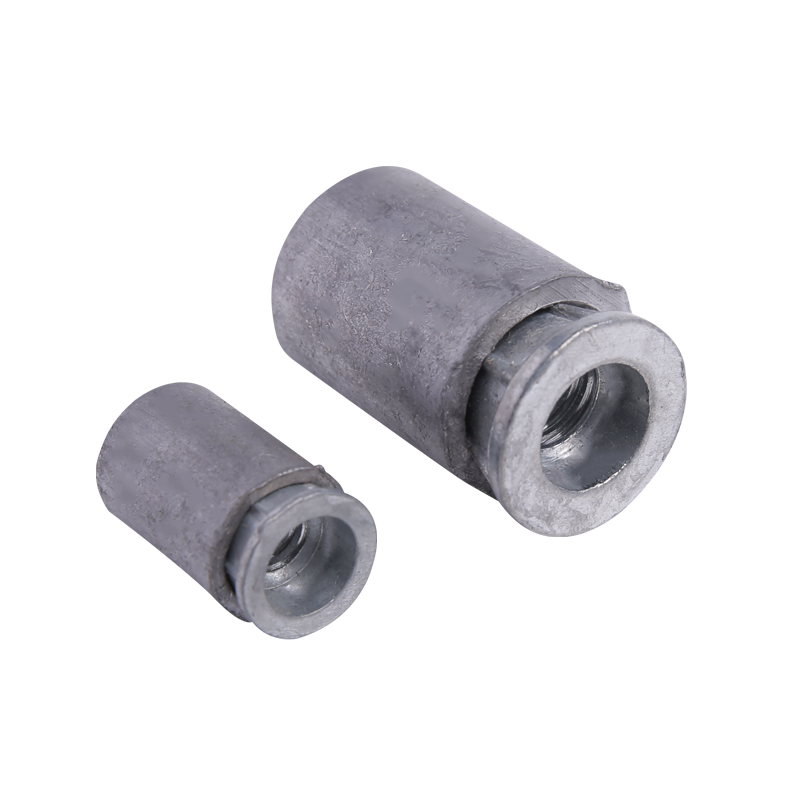

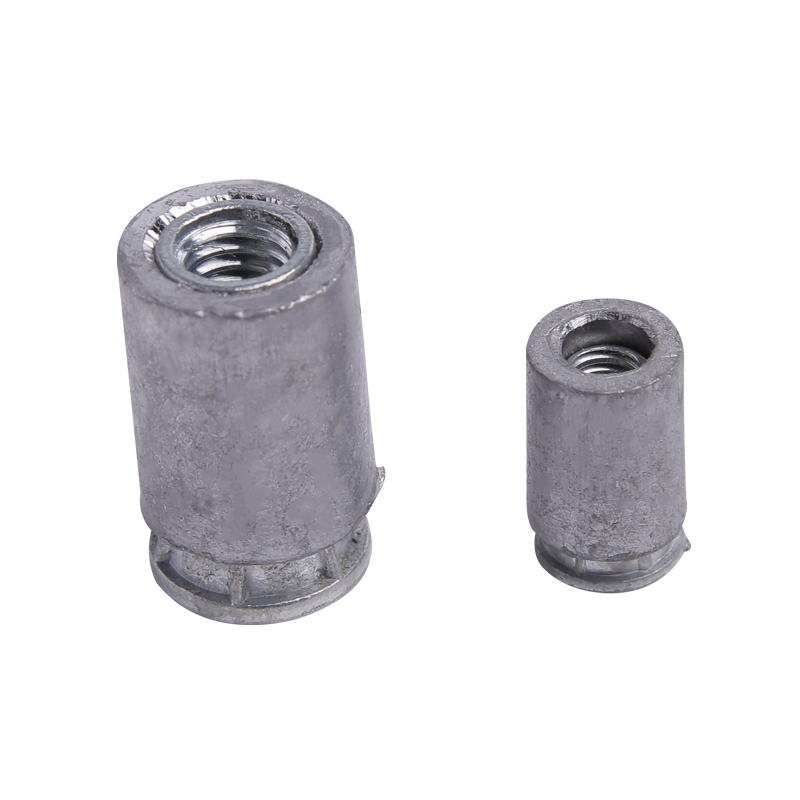

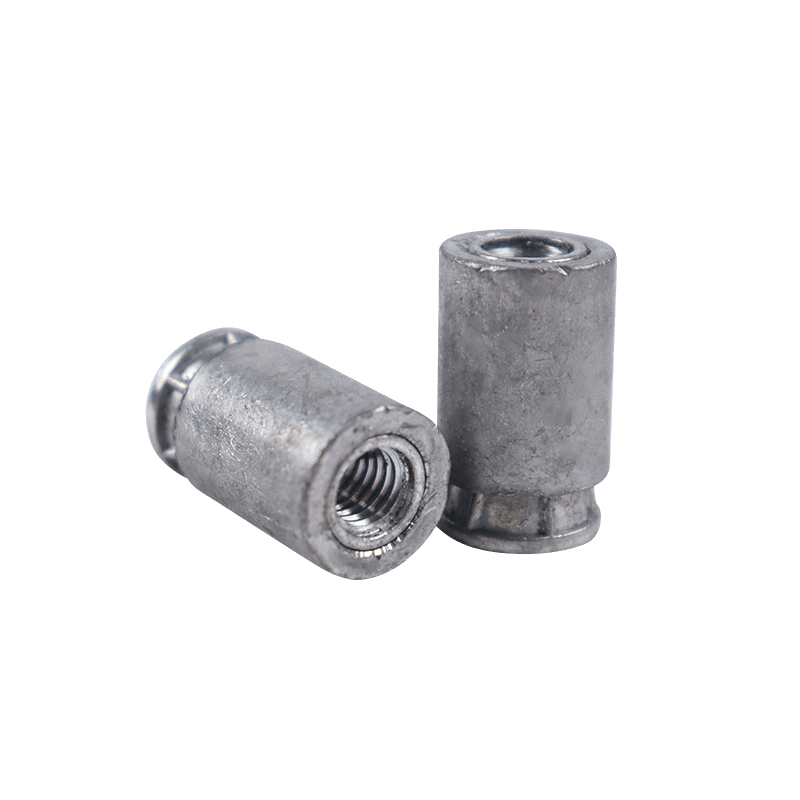

Introduction: The machine screw anchor is the original mechanical anchor design. The malleable lead shield allows for secure mounting. Need setting tool.
Material: Lead and Zamak Zinc Alloy
Applications: Can be used in solid masonry and concrete
|
Code |
Size |
Drill Diameter |
Length |
Setting Tool |
|
MS-10 |
#10-24 |
3/8’’ |
5/8’’ |
MST-10 |
|
MS-14 |
1/4’’-20 |
1/2’’ |
7/8’’ |
MST-14 |
|
MS-56 |
5/16’’-18 |
5/8’’ |
1’’ |
MST-56 |
|
MS-38 |
3/8’’-16 |
3/4’’ |
1-1/4’’ |
MST-38 |
|
MS-12 |
1/2’’-13 |
7/8’’ |
1-1/2’’ |
MST-12 |
